SEALED AIR® ProPad Horizontal Paper cushioning for packing stations and conveyor lines: the ProPad Horizontal works directly above the endless paper pallet, saving floor space and heavy lifting – up to 150 pads per minute.

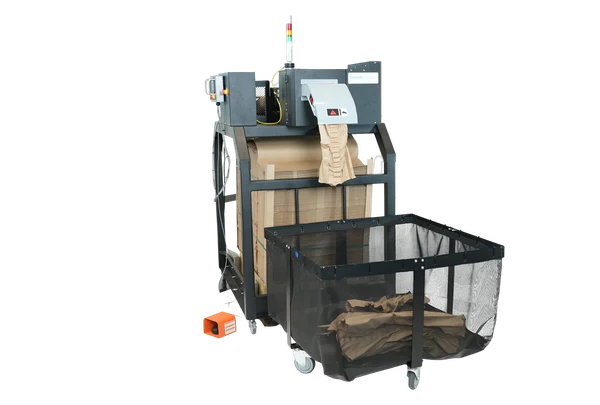

SEALED AIR® ProPad Horizontal

Compact, powerful and purpose-built.

Paper cushioning right at the line – no trolley, no pallet next to it.

The SEALED AIR® ProPad Horizontal is wheeled over a pallet of endless fanfold paper and supplies packing stations and conveyor lines with paper pads – on a minimal footprint. One pallet holds up to 8,040 m of paper, which reduces reloading, storage and handling.

Ergonomics for the operator
The paper is fed in upright – no heavy lifting. The magnetic HMI panel can be placed on the left or right, and a foot switch releases pads.

Intelligent automation
Four operating modes (manual, auto repeat, batch, sequence), a bin-full sensor and a stack light keep the line moving – up to 150 pads per minute at 30 cm length, pad width 150 to 190 mm.

Sustainable
TigerPad® paper made from 100% recycled fibres, kerbside recyclable; patented single-motor drive with low power consumption.

Technical data
Dimensions (L × W × H) 1.34 × 1.06 × 1.76 m · weight 211 kg (system only) · 230 V, 50 Hz, single phase, 10 A · CE and CSA approved.

Product properties

Blocking and bracing
Cushioning
Void fill

Looking for a new packaging solution?

We will be happy to advise you, free of charge and without obligation!

FUCHSPACK UNIQBAG GmbH collects, processes and uses your personal data solely to handle your enquiry. Your data will not be used for any other purpose or passed on to third parties. The legal basis for processing is Art. 6 (1) lit. b GDPR (performance of (pre-)contractual measures). Further information, in particular on your rights as a data subject, can be found in our privacy policy for customers and prospects.
*) Required field

Application examples

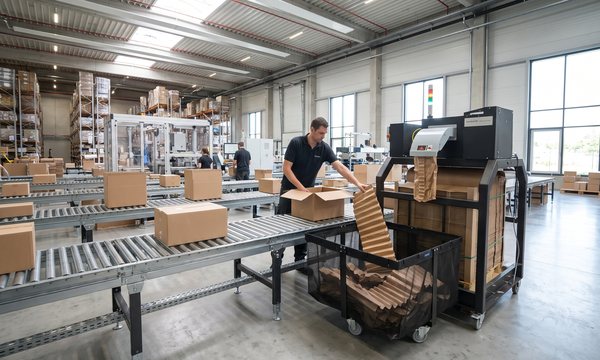

ProPad Horizontal on a conveyor line in a fulfilment centre, packer taking paper pads from the collection bin

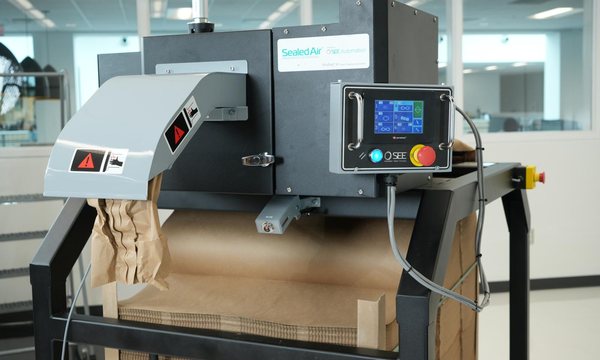

ProPad Horizontal with exit chute and magnetic HMI panel above the endless paper pallet
Shipping carton on the conveyor, product cushioned with ProPad paper pads

How it works

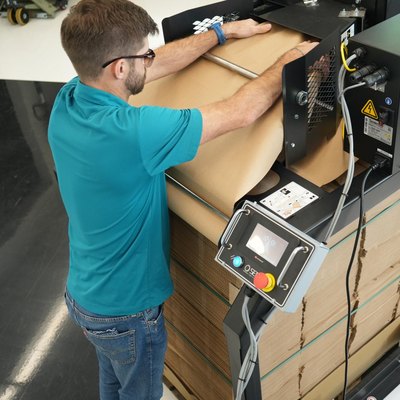

Employee feeding the endless paper upright into the ProPad Horizontal

Dock

Wheel the system over the endless paper pallet, feed the paper in upright and press the auto-load key – no heavy lifting.

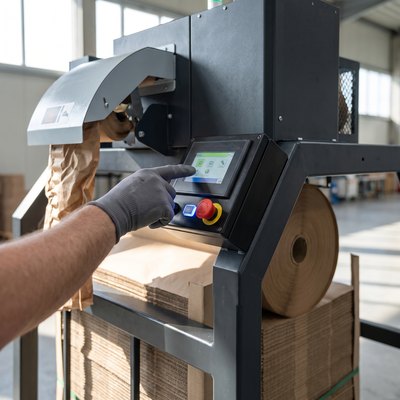

Operating the magnetic HMI display on the ProPad Horizontal

Select mode

Choose length and operating mode on the magnetic HMI display: manual, auto repeat, batch or programmed sequence.

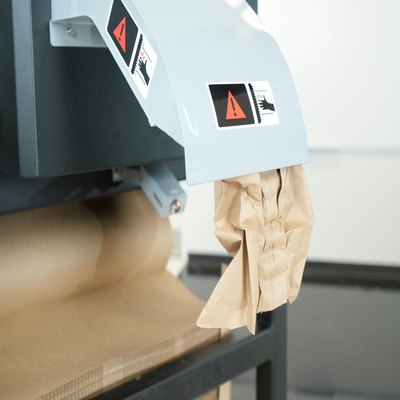

Paper pad leaving the exit chute of the ProPad Horizontal

Cushion

Take the pads from the collection bin and use them for cushioning, blocking and bracing – the bin-full sensor stops automatically.

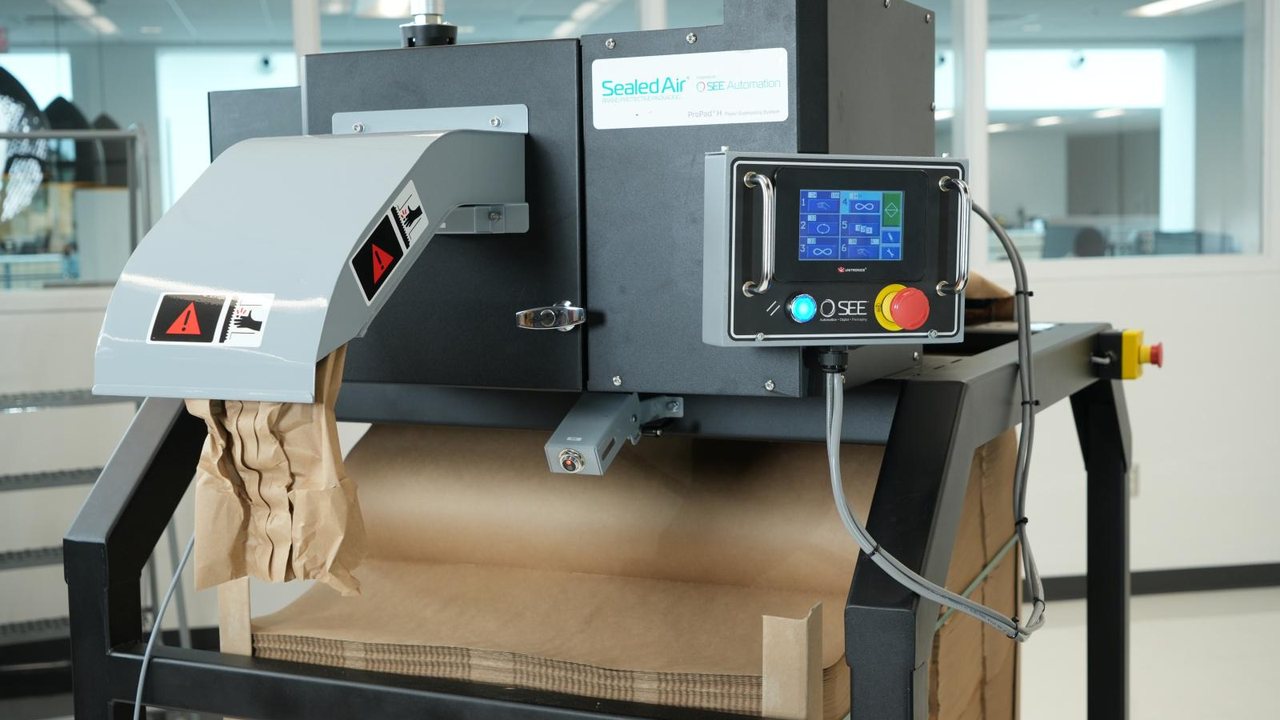

The ProPad Horizontal in action

Official product video by Sealed Air

How the system is wheeled over the endless paper pallet, how the paper is fed in upright and how the pads are produced right at the line – the video shows this better than any description.

  • Docking to the endless paper pallet – no lifting
  • Operating modes on the magnetic HMI display
  • Pad output at packing station and conveyor

The video only starts after you click. This establishes a connection to YouTube (Google) – see our privacy policy.
